List Product Transceivers

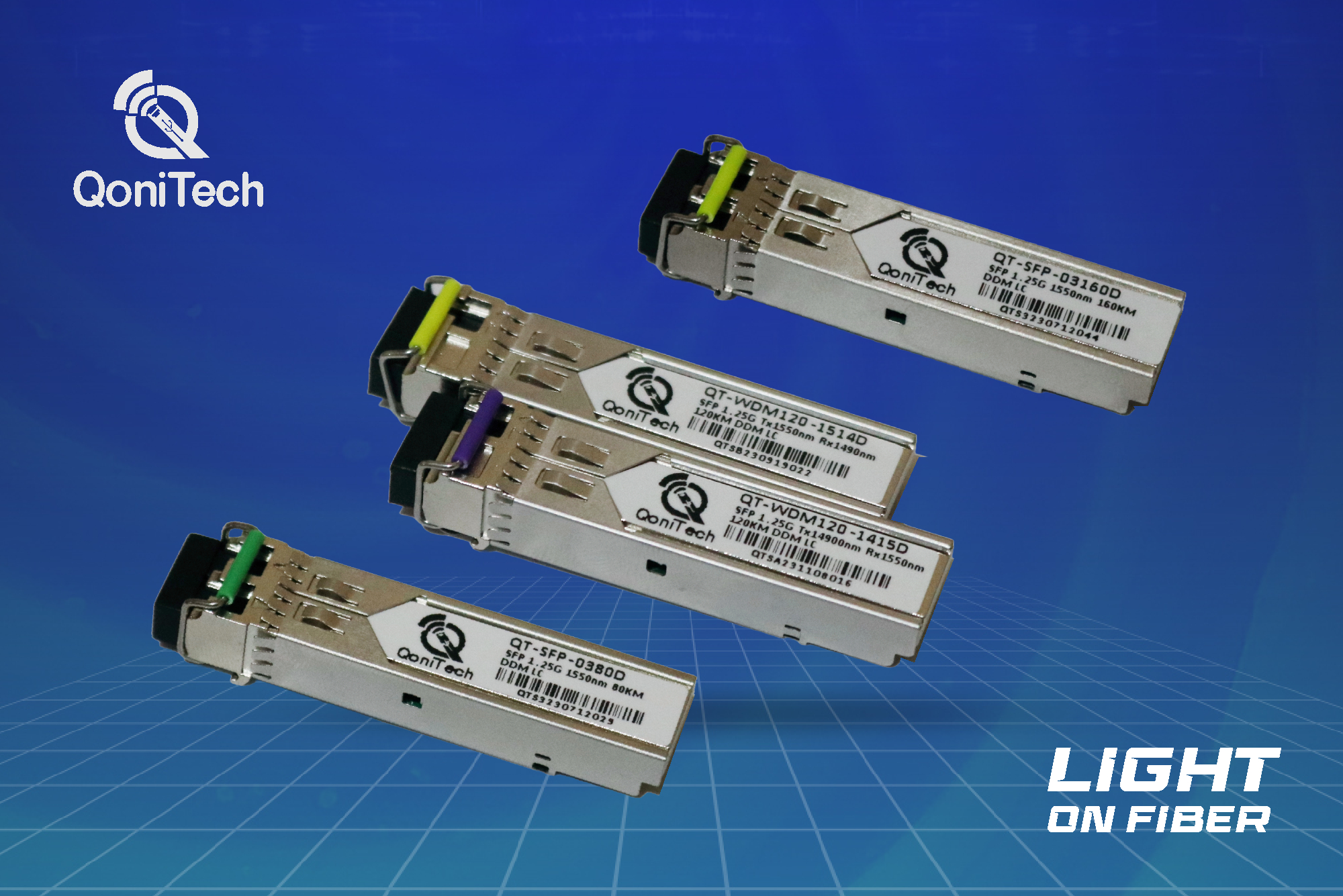

1G Transceivers
A full range of 1G, 10G, 40G and 100G high-speed optical module products are available at QoniTech. Compatible and resilient product with reasonable price are the main reason why our customer choose us as a partner. We believe our solution will give maximum benefit to the customer in the technical and financial area.
| Type | Part Number | Data Rate | Wavelength(nm) | Source | TX Power(dBm) | RX Sens (dBm) | Temperature Range | Connector | DDM | Reach |
|---|---|---|---|---|---|---|---|---|---|---|
| 1G SFP | QT-SFP-0301D | 1.25G | 850 | VCSEL+PIN | -9.5 ~-3 | -17 | 0C ~ +70C | LC | with | 550m |
| 1G SFP | QT-SFP-0310D | 1.25G | 1310 | FP+PIN | -9 ~-3 | -21 | 0C ~ +70C | LC | with | 10km |
| 1G SFP | QT-SFP-0320D | 1.25G | 1310 | FP+PIN | -9 ~-3 | -22 | 0C ~ +70C | LC | with | 20km |
| 1G SFP | QT-SFP-0340D | 1.25G | 1310 | DFB+PIN | -5~ 0 | -23 | 0C ~ +70C | LC | with | 40km |
| 1G SFP | QT-SFP-0380D | 1.25G | 1550 | DFB+PIN | 0~5 | -24 | 0C ~ +70C | LC | with | 80km |
| 1G SFP | QT-SFP-03120D | 1.25G | 1550 | DFB+APD | 0~5 | -32 | 0C ~ +70C | LC | with | 120km |
| 1G SFP | QT-SFP-03150D | 1.25G | 1550 | DFB+APD | 0~5 | -35 | 0C ~ +70C | LC | with | 150km |
| 1G BIDI SFP | QT-WDM-0210AD | 1.25G | Tx1310/Rx1550 | FP+PIN | -9 ~ -3 | -21 | 0C ~ +70C | LC | with | 10km |
| 1G BIDI SFP | QT-WDM-0210BD | 1.25G | Tx1550/Rx1310 | FP+PIN | -9 ~ -3 | -21 | 0C ~ +70C | LC | with | 10km |
| 1G BIDI SFP | QT-WDM-0220AD | 1.25G | Tx1310/Rx1550 | FP+PIN | -9 ~ -3 | -22 | 0C ~ +70C | LC | with | 20km |
| 1G BIDI SFP | QT-WDM-0220BD | 1.25G | Tx1550/Rx1310 | DFB+PIN | -9 ~ -3 | -22 | 0C ~ +70C | LC | with | 20km |
| 1G BIDI SFP | QT-WDM-0240AD | 1.25G | Tx1310/Rx1550 | DFB+PIN | -5~ 0 | -23 | 0C ~ +70C | LC | with | 40km |
| 1G BIDI SFP | QT-WDM-0240BD | 1.25G | Tx1550/Rx1310 | DFB+PIN | -5~ 0 | -23 | 0C ~ +70C | LC | with | 40km |
| 1G BIDI SFP | QT-WDM80-1415D | 1.25G | Tx1490/Rx1550 | DFB+APD | -2~ 3 | -26 | 0C ~ +70C | LC | with | 80km |
| 1G BIDI SFP | QT-WDM80-1514D | 1.25G | Tx1550/Rx1490 | DFB+APD | -2~ 3 | -26 | 0C ~ +70C | LC | with | 80km |
| 1G BIDI SFP | QT-WDM120-1415D | 1.25G | Tx1490/Rx1550 | DFB+APD | 0~5 | -32 | 0C ~ +70C | LC | with | 120km |
| 1G BIDI SFP | QT-WDM120-1514D | 1.25G | Tx1550/Rx1490 | DFB+APD | 0~5 | -32 | 0C ~ +70C | LC | with | 120km |
